Installation

Install Weight-Based Products in minutes using the WordPress admin, manual upload, or WP-CLI.

wp plugin install weight-based-products.zip --activate

Verifying Installation

After activation:

• A new Weight Based Products submenu appears under WooCommerce in the admin sidebar.
• When editing any product, "Weight-Based Product" appears in the Product Type dropdown.
• If WooCommerce is not active, a red admin notice will explain the dependency.

Quick Start

Create your first weight-based product in 5 minutes.

Fixed Packs Mode

Customers select from predefined package sizes. The plugin calculates the optimal combination to match a desired total weight.

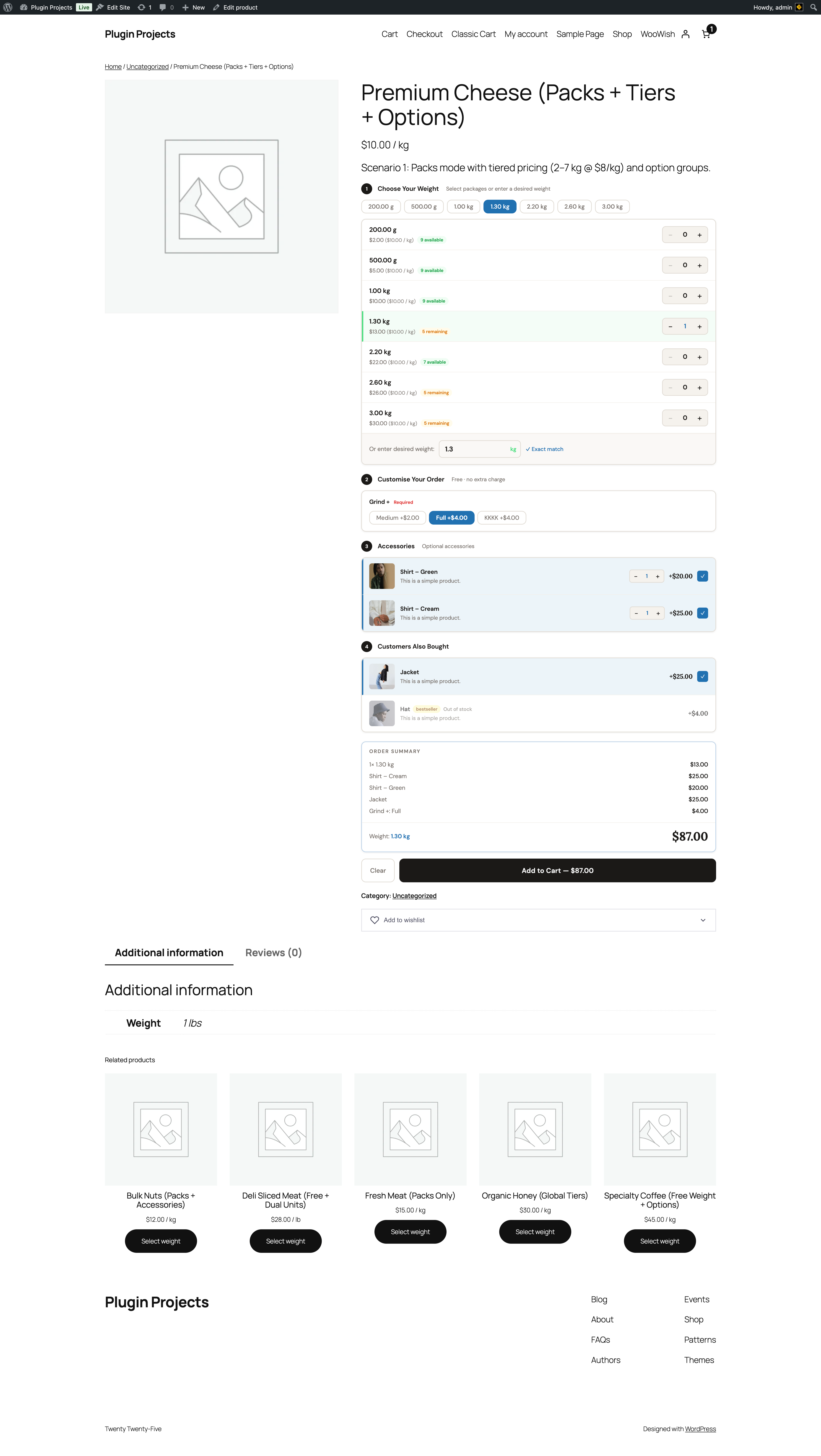

Product page with Fixed Packs: package cards, desired weight input, options, accessories, and order summary.

How It Works

You define specific package weights (e.g. 200 g, 500 g, 1 kg, 2.5 kg). On the product page, customers see each available pack as a selectable card or row. They use +/− buttons to set the quantity for each pack, or they can enter a desired total weight and let the algorithm suggest the best combination.

Package Cards

Packages display in two layouts (configurable globally in Appearance or per-product):

• List Rows — Compact horizontal rows with weight, price, stock badge, and quantity stepper.
• Card Grid — Visual cards with bold weight labels, prices, and hover effects. Clicking a card selects it with quantity 1.

Each card can show:

• Weight label (e.g. "500 g"), price per package, and unit price (e.g. "$10.00/kg")
• Stock badge (e.g. "Only 2 left!", "Out of stock")
• Marketing badge (e.g. "Recommended", "Best Seller") — set per pack in the admin

Desired Weight Input

When "Allow customer to type a weight" is enabled, a text field appears where customers can enter a target weight (e.g. 2.5 kg). The plugin runs a best-combination algorithm to find the closest match using available packs, respecting:

• Suggestion mode — Always round up, always round down, or closest match
• Tolerance — How far from the target still counts as exact (e.g. ±50 g)
• Max packages in suggestion — Upper limit on the total pack lines (default 25)

Quick-Select Presets

Comma-separated preset values (e.g. 0.2, 0.5, 1, 2, 3) display as clickable chips above the package list. Clicking a chip runs the best-combination algorithm for that weight instantly.

Order Weight Limits

Set minimum and maximum order weight per product. If the customer's total weight falls outside these limits, a warning message is shown (e.g. "⚠ Minimum order: 300 g") and the Add to Cart button is disabled.

Tiered Pricing

Enable tiered pricing to charge different rates per weight bracket. Tiers can be defined globally (Settings → Pricing Rules) or per-product. Product-level tiers always override global tiers. Weights outside any tier range use the base price.

Free Weight Mode

Customers enter any weight using an animated slider or typed input. Price calculates live as they adjust.

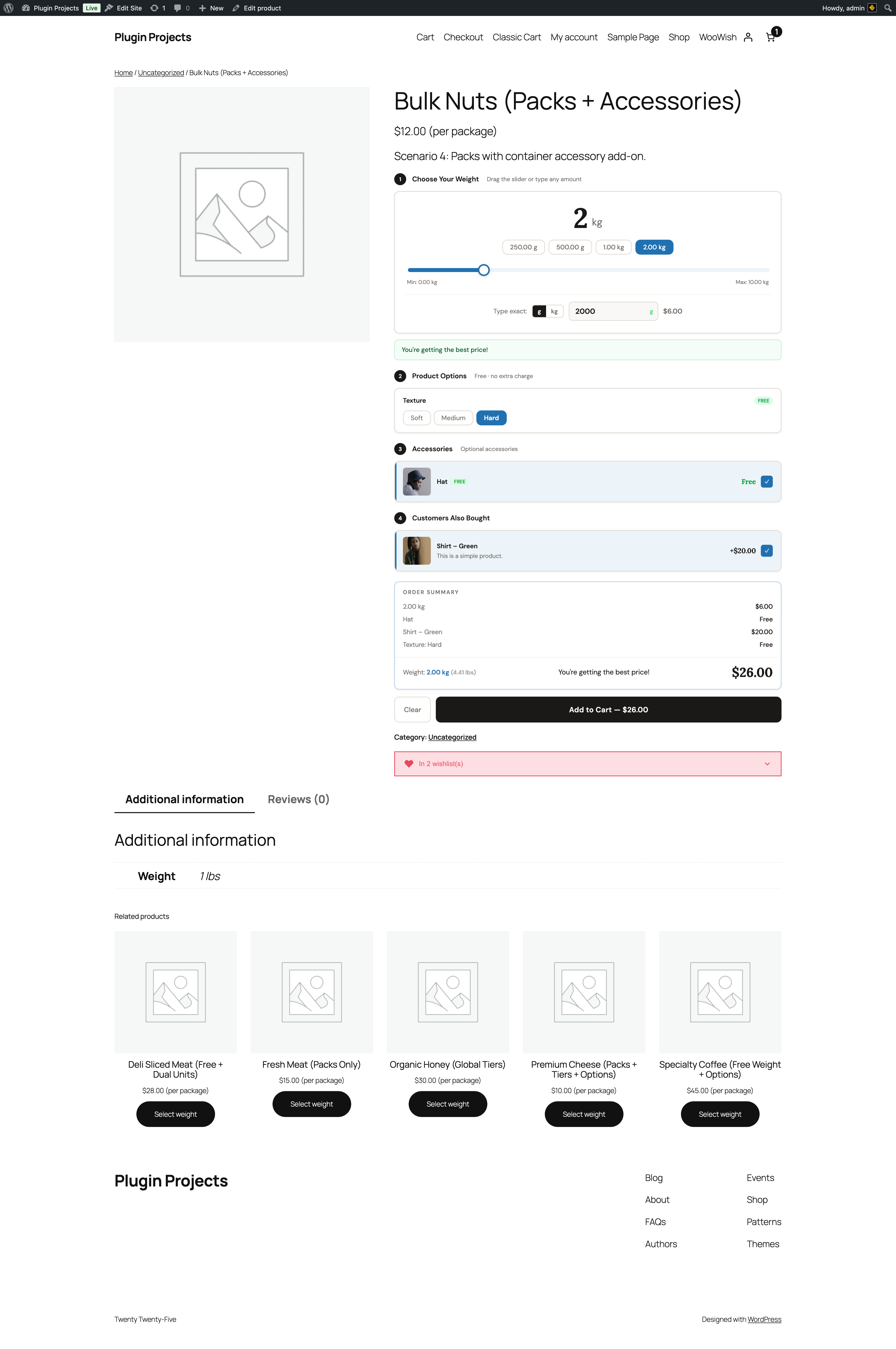

Product page with Free Weight: slider, presets, typed input, dual-unit display, options, and order summary.

Weight Slider

An animated range slider lets customers drag to select a weight between the configured minimum and maximum. The step size controls the increment (e.g. 0.1 kg = 100 g steps). The current weight and calculated price update in real time.

Typed Input

When "Allow customer to type a weight" is enabled, a text field appears alongside the slider. Customers can type an exact weight (e.g. 2.35 kg). A unit toggle lets them switch between sub-units (g/kg or oz/lb) depending on the product's display unit. The value is validated against the min/max limits after entry.

Quick-Select Presets

Preset weight buttons (e.g. 200 g, 500 g, 1 kg, 2 kg) appear above the slider. Clicking a preset sets the slider and typed input to that weight instantly. Configure presets as a comma-separated list in the product editor.

Dual-Unit Display

When enabled, the product shows both units simultaneously (e.g. "2.00 kg (4.41 lb)"). This helps international customers understand the weight in their preferred unit.

Free-Weight Inventory

Optionally set a total available weight pool (e.g. 50 kg of fresh deli meat). As customers add weight to their cart, the remaining pool decreases. When stock drops below the low-weight threshold, a low-stock badge appears. The slider maximum adjusts dynamically to reflect the remaining inventory.

Free Weight Settings

Product Options

Add custom options (grind type, texture, gift wrap, etc.) to weight-based products. Options appear on the product page and in cart/order details.

Product Options tab: section header and option groups by category.

How Options Work

Option groups are defined globally in WooCommerce → Weight Based Products → Option Groups. Each group belongs to a category (e.g. "Coffee Products", "General"). On each product, you enable/disable specific groups and optionally override labels or choices.

Option Group Categories

Categories organise related option groups. Examples:

• Coffee Products — "Grind Type", "Roast Level"
• Meat Products — "Cut Style", "Marination"
• General — "Gift Wrap", "Store Policy Note"

Each category has a name, optional description, and colour label (blue, green, orange, purple, red, gray).

Option Group Settings

Per-Product Overrides

In the product editor (Product Options tab), you can:

• Enable or disable specific option groups for this product
• Override the section title and description
• Override labels or choices for specific groups

Accessories & Upsell Bundles

Cross-sell products shown below the weight selector. Accessories support per-item quantity; bundles are single-toggle add-ons. Sides do not affect order weight.

Sides & Add-ons tab on a product: accessories and upsell bundles configuration.

Accessories

Accessories are simple WooCommerce products linked to a weight-based product. They appear on the product page in a dedicated section (e.g. "Complete Your Setup" or "Accessories"). Each accessory has:

• Product name, thumbnail (optional), and price
• Quantity stepper — customer can add multiple units
• Optional override price, display label, description, and max quantity per order
• Optional "FREE" badge

Upsell Bundles

Bundles are "Customers Also Bought"-style products. They appear as single-toggle add-ons — click to add, click again to remove. Each bundle product can have a custom price override and display label.

Cart Behaviour

Two modes are available (configurable in Settings → Sides & Add-ons):

• Separate line items (chained) — Each accessory/bundle appears as its own cart row with "Add-on for: [Main Product]" label. Removing the main product automatically removes all its chained sides. Stock and refunds are handled per item.
• Grouped under main product — Sides are stored on the main product and shown as a single line (e.g. "Sides: 1 × Hat, 1 × Shirt"). No separate rows; refunding the main product refunds the full line including sides.

Pricing & Order Total

When "Add sides to order total" is enabled, the Add to Cart button shows the cumulative total (weight product + options + all sides). Accessory and bundle prices come from the linked WooCommerce product but can be overridden per product.

Cart & Checkout

How weight-based products appear in the WooCommerce cart, checkout, and order emails.

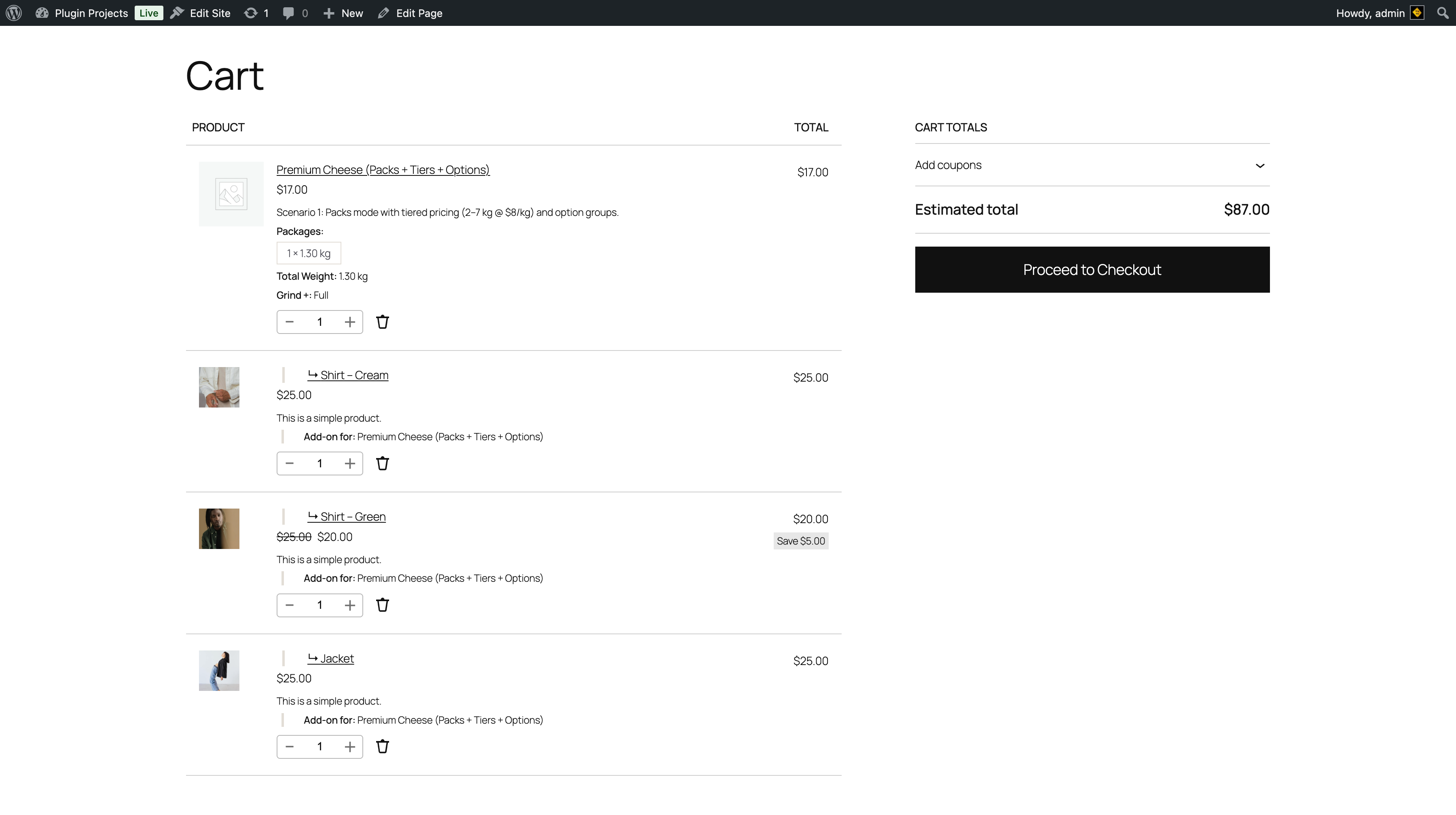

Cart page with a weight-based product (packages, total weight, options) and chained add-on lines.

Cart Display

The main product shows its name, price, and weight details. Depending on the Cart line format setting:

• Full breakdown — e.g. "2× 1 kg + 1× 500 g"
• Weight only — e.g. "2.5 kg total"
• Compact — e.g. "3 packages (2.5 kg)"

Selected options (e.g. "Grind: Full") appear as meta below the product name. The WooCommerce quantity selector and remove button work as normal.

Add-on Lines

In Separate line items mode, each accessory/bundle appears as its own cart row with "Add-on for: [Main Product]" label. In Grouped mode, sides display as a single sub-line under the main product.

Cart Consolidation

When the same weight-based product (same options, same sides configuration) is added to the cart multiple times, the plugin automatically merges them into one cart line. Pack counts or free-weight totals are summed. Duplicate accessories are also consolidated — their quantities are merged rather than creating separate rows.

Checkout & Orders

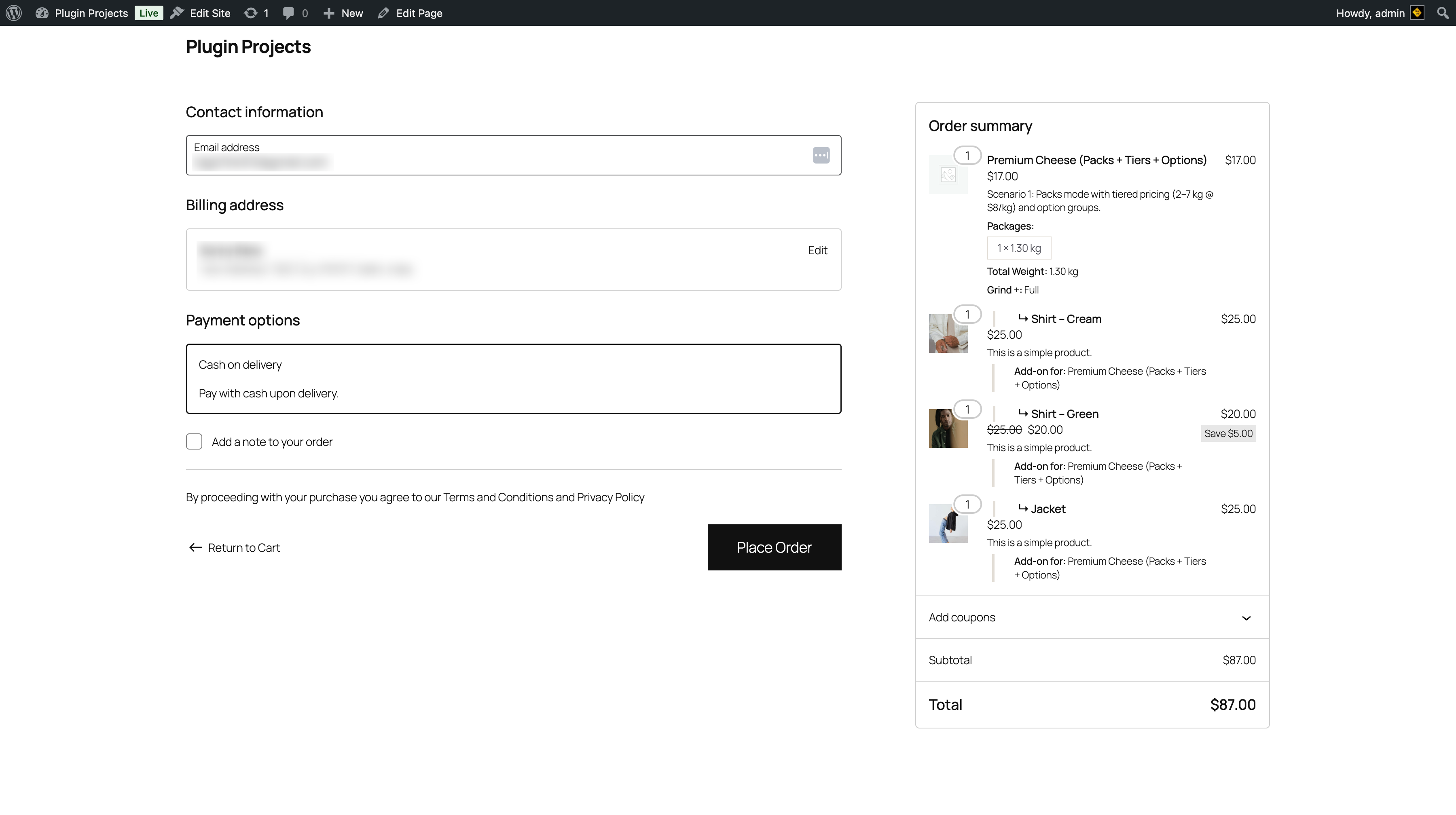

Checkout page: order summary with weight-based product details, add-ons, and totals.

The checkout order summary shows the same breakdown as the cart. After placing an order:

• Order items store the full weight data, selected packages, options, and sides as meta
• Admin order view shows a Weight column when at least one weight-based item exists
• Order confirmation emails include the weight/package breakdown when enabled in settings
• Stock is reduced per package (Fixed Packs) or by total weight (Free Weight)

Email Display

Enable Show breakdown in emails / order view (Settings → General) to include detailed weight/package information in customer and admin emails. Enable Show sides breakdown in emails (Settings → Sides) to include accessory/bundle details.

General Settings

Default units, display format, stock management, cart behaviour, and the package suggestion algorithm. Located at WooCommerce → Weight Based Products → General.

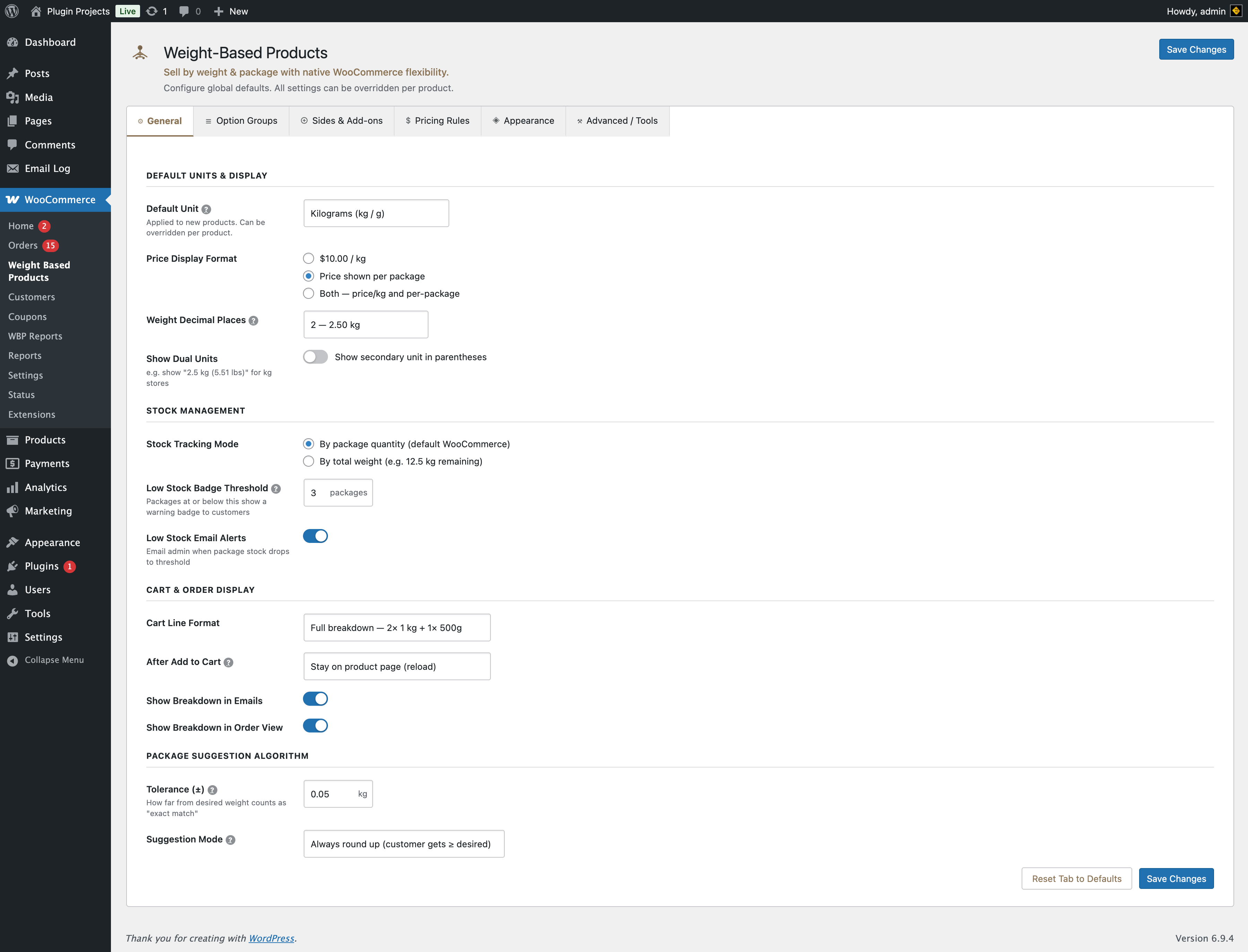

General tab in WooCommerce → Weight Based Products: units, stock, cart display, and suggestion algorithm.

Default Units & Display

Stock Management

Cart & Order Display

Package Suggestion Algorithm

Controls how the best-combination search works when a customer enters a desired weight in Fixed Packs mode.

Option Groups Settings

Define global option groups organised into categories. Enable them per product in the product editor. Located at WooCommerce → Weight Based Products → Option Groups.

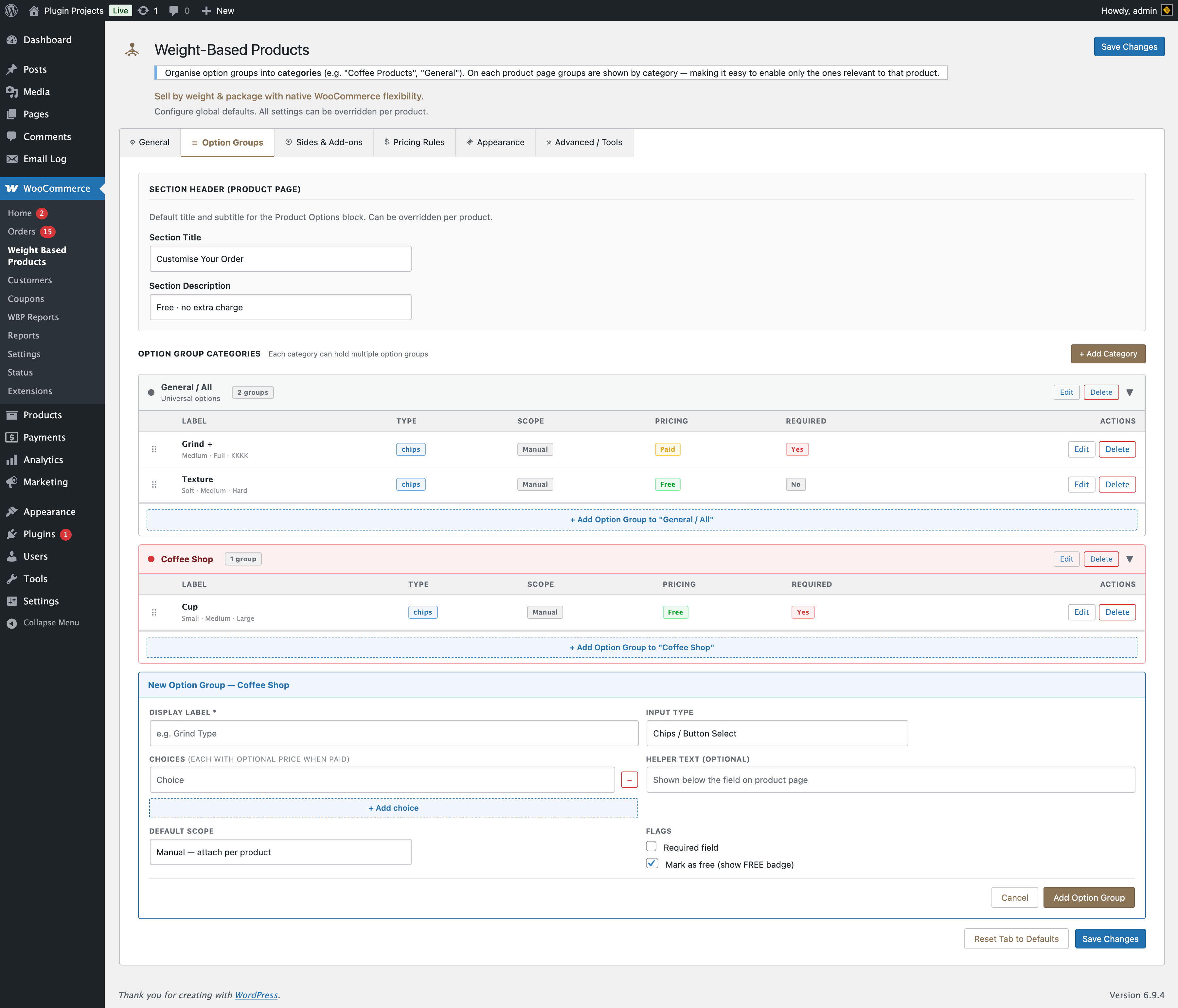

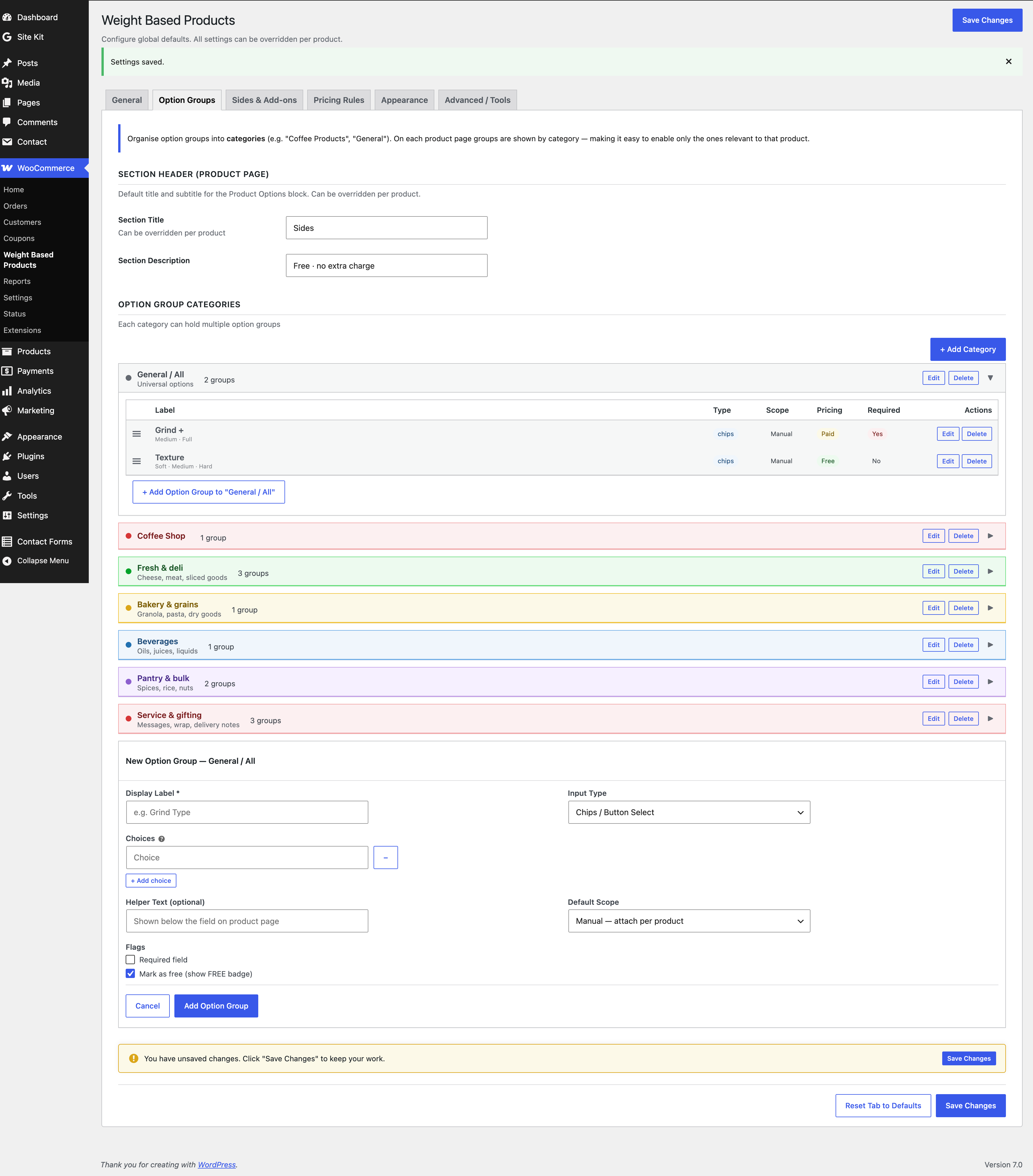

Option Groups tab: section header, categories, and option group configuration.

Section Header (Product Page)

Configure the default title and description for the "Product Options" block on the frontend:

• Section title — e.g. "Customise Your Order"
• Section description — e.g. "Free · no extra charge"

These can be overridden per product in the Product Options tab.

Option Group Categories

Create categories to organise related option groups (e.g. "Coffee Products", "General"). Each category has:

• Name and optional description
• Colour label (blue, green, orange, purple, red, gray) for admin visual organisation

Option Groups (Per Category)

Under each category, add option groups. Each group defines a customer-facing input field on the product page. Settings include:

• Display label — e.g. "Grind Type", "Texture"
• Input type — Chips/button select, Dropdown, Text area (free text), Single checkbox, Radio buttons
• Choices — Each with a name and optional price (for paid groups)
• Helper text — Shown below the field on the product page
• Default scope — Manual (attach per product) or Auto-attach to all products
• Flags — Required field; Mark as FREE (show badge)

Sides & Add-ons Settings

Configure accessories and upsell bundles shown below the weight selector. Sides do not affect order weight. Located at WooCommerce → Weight Based Products → Sides & Add-ons.

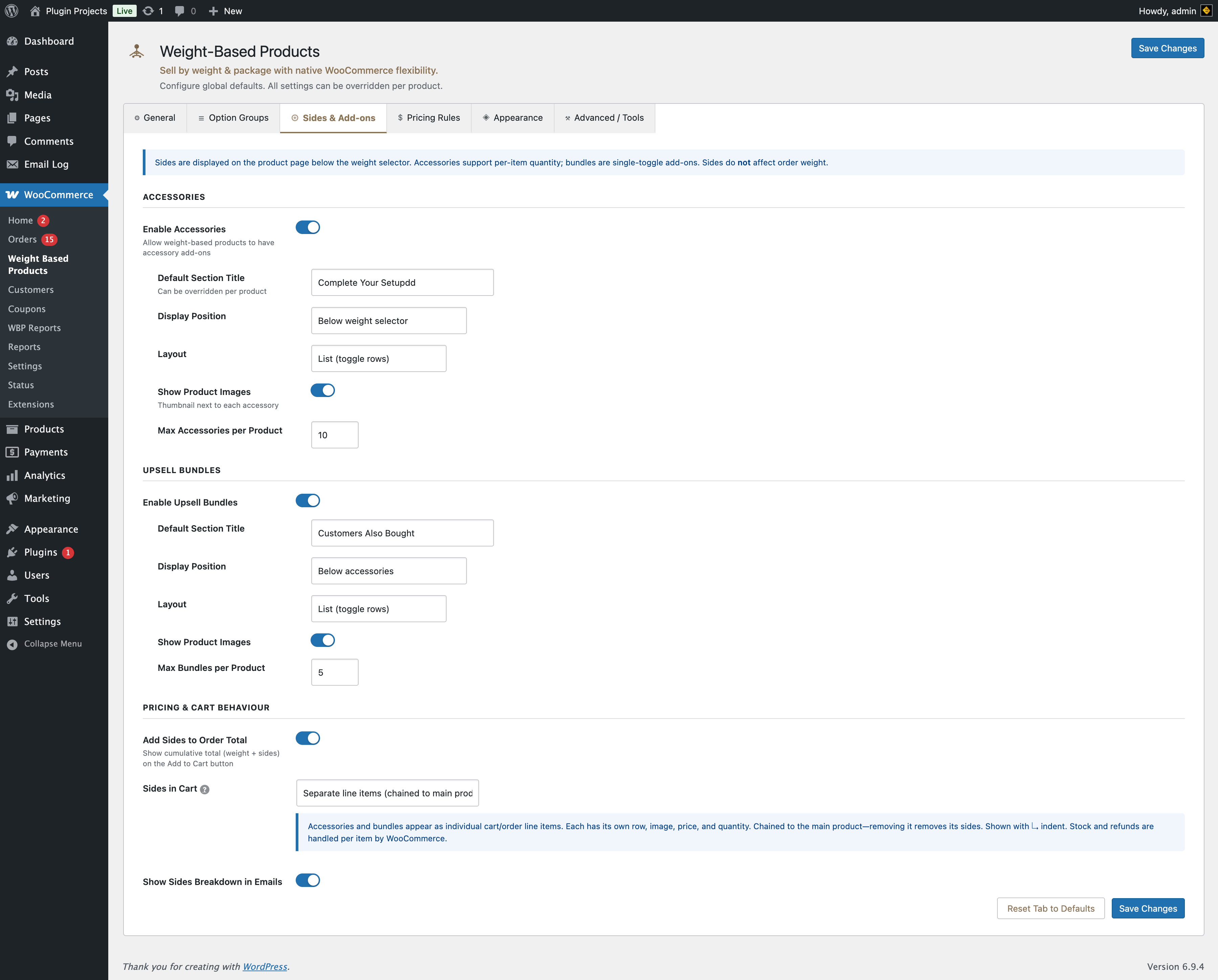

Sides & Add-ons settings tab: accessories and upsell bundles defaults, layout, and cart behaviour.

Accessories

Upsell Bundles

Pricing & Cart Behaviour

Pricing Rules

Global tiered pricing, role-based pricing, bulk savings badge, and sale countdown. Located at WooCommerce → Weight Based Products → Pricing Rules.

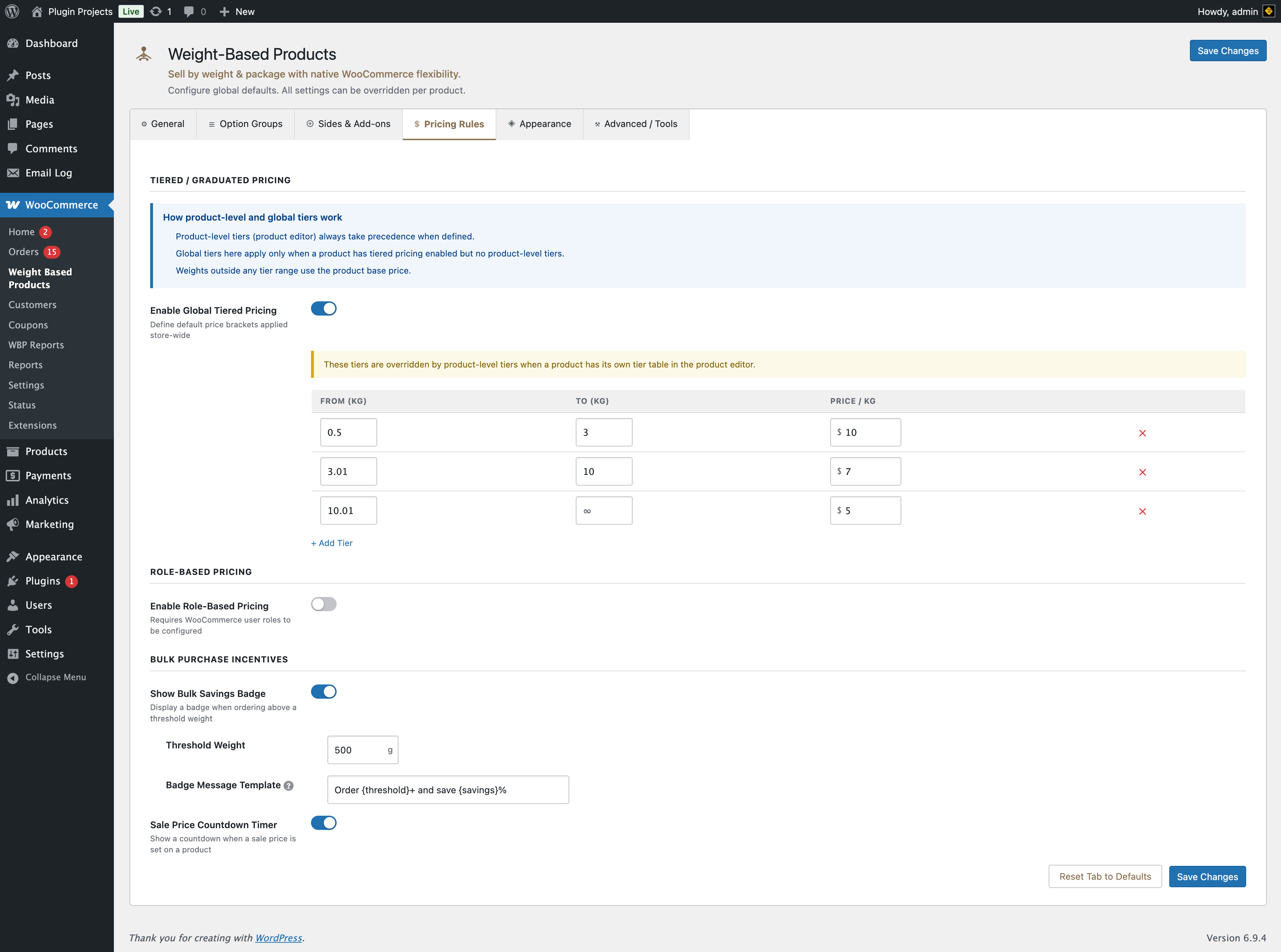

Pricing Rules tab: tiered pricing, role-based pricing, and bulk incentives.

How Tiers Work

• Product-level tiers (set in the product editor) always take precedence when defined
• Global tiers here apply only when a product has tiered pricing enabled but no product-level tier table
• Weights outside any tier range use the product's base price

Tiered / Graduated Pricing

Enable global tiered pricing to define default price brackets. Each tier has: From (weight), To (weight), and Price per unit. Use "Add Tier" to add rows. These tiers are overridden by product-level tiers.

Role-Based Pricing

Enable role-based pricing to set different rates per WooCommerce user role (e.g. Wholesale at 20% off). Prices set here are defaults and can be overridden per product.

Bulk Purchase Incentives

Appearance Settings

Colours, borders, step numbers, section cards, quantity stepper, buttons, presets, and custom CSS. Located at WooCommerce → Weight Based Products → Appearance.

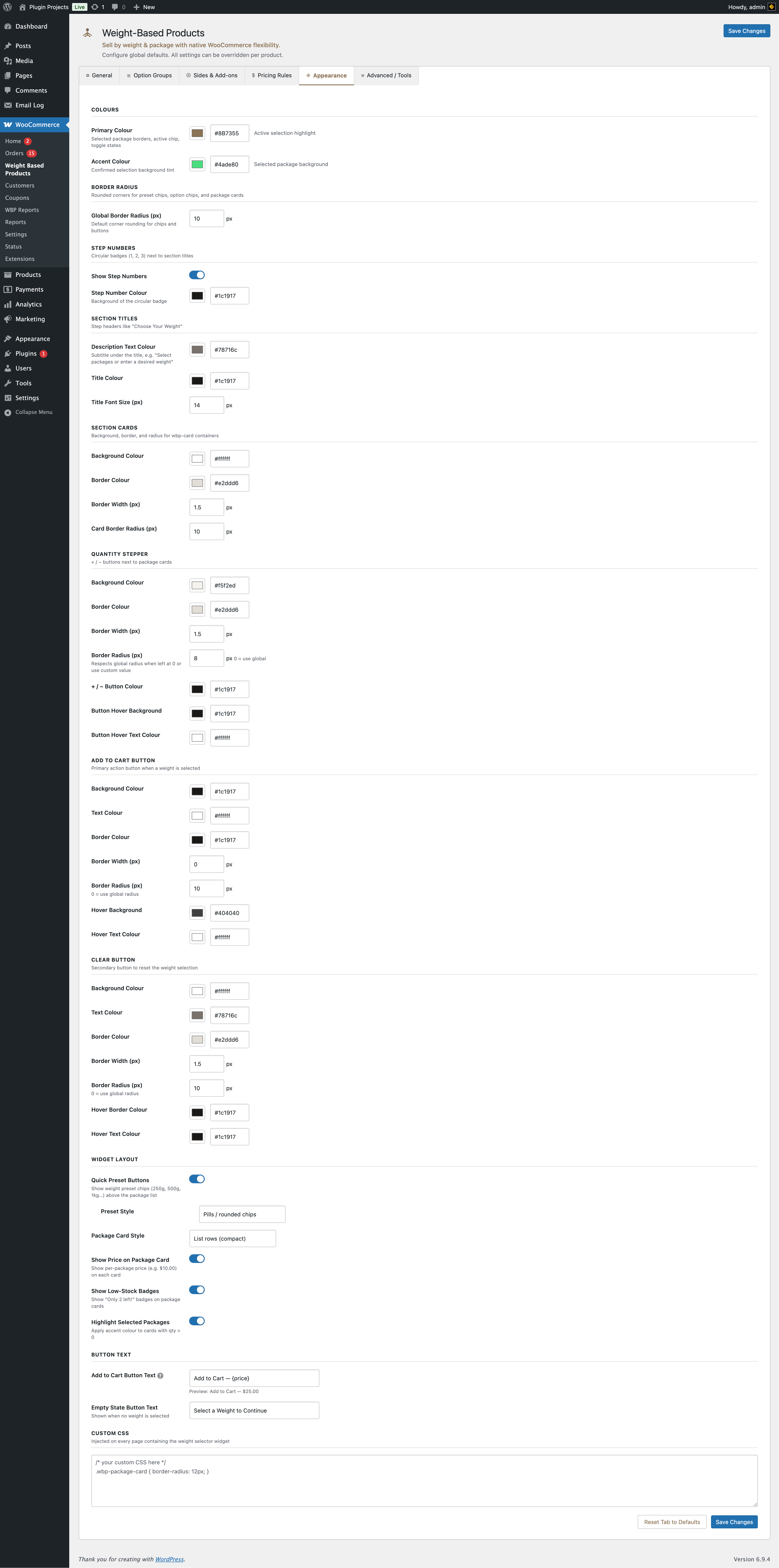

Appearance tab: presets, colours, borders, step numbers, cards, buttons, and custom CSS.

Appearance Presets

Select from one-click style themes using the preset dropdown at the top of the Appearance tab:

• Default — Restore original plugin styling
• Glass — iOS 26-inspired liquid glass effect with backdrop-filter blur, translucent backgrounds, inner glow shadows, and shine pseudo-elements
• Nature — Fresh green tones for organic/natural product stores
• Elegant — Rich purple accents for premium product displays

Colours

Primary colour — Selected package borders, active chip, toggle states. Accent colour — Confirmed selection background tint.

Section Titles & Step Numbers

• Step numbers — Circular badges (1, 2, 3…) next to section titles. Toggle visibility and set badge background colour.
• Section titles — Title colour, description text colour, and title font size (px).
• Section cards — Background, border colour, border width, and card border radius.

Pack Cards (9 Granular Controls)

Buttons & Stepper

• Quantity stepper — +/− buttons: background, border, button colour, hover states
• Add to Cart button — Background, text, border, hover states. Use {price} and {weight} placeholders in button text.
• Clear button — Secondary button to reset weight selection
• Empty state text — Text when no weight is selected (e.g. "Select a Weight to Continue")

Widget Layout

• Quick preset buttons — Show weight preset chips; style: Pills, Rectangular, or Tab strip
• Package card style — List rows or Card grid (overridable per product)
• Show price on package card
• Show low-stock badges
• Highlight selected packages

CSS Isolation & Custom CSS

CSS Isolation mode — When enabled, adds a body class (lf-wbpw-isolated) and all plugin CSS rules are scoped inside it for higher specificity. This prevents themes from overriding plugin styles. Disable if you want your theme to control styling.

Custom CSS — Injected on every page containing the weight selector widget. Override any style (e.g. .wbp-package-card { border-radius: 12px; }).

CSS custom properties — The plugin uses variables like --lf-wbpw-primary, --lf-wbpw-accent, etc. Override them in your theme's CSS for easy customisation.

Advanced & Tools

Data import/export, sample products, reset settings, cache management, and developer options. Located at WooCommerce → Weight Based Products → Advanced / Tools.

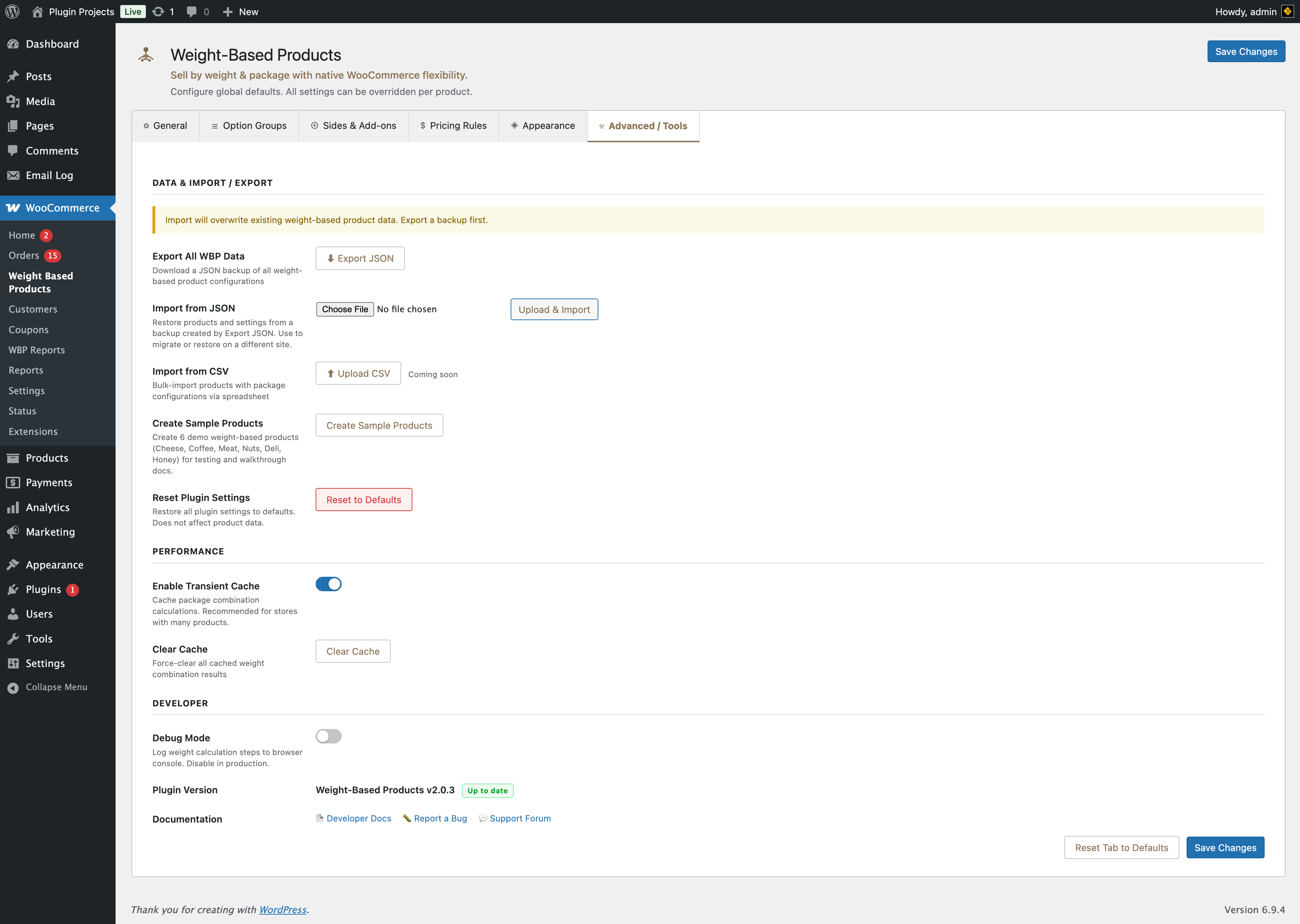

Advanced / Tools tab: export/import, sample products, cache, and debug mode.

Data & Import / Export

Performance

• Enable transient cache — Cache package combination calculations. Recommended for stores with many products.
• Clear cache — Force-clear all cached weight combination results. Use after changing packages.

Developer

• Debug mode — Log weight calculation steps to the browser console. Disable in production.
• Plugin version, links to Developer Docs, Report a Bug, and Support Forum are shown here.

Product Editor

How to configure individual weight-based products in the WooCommerce product editor. Select "Weight-Based Product" from the Product data dropdown to reveal the plugin's tabs.

General Options Tab

The main configuration tab for weight-based products. Settings include:

• Weight display unit — Store default, Kilograms (kg/g), or Pounds (lb/oz). Overrides the global default for this product.
• Ordering mode — Fixed Packs or Free Weight. Determines which fields are visible below.
• Base Price (per kg/lb) — Regular price per weight unit.
• Sale Price (per kg/lb) — Optional sale price. Sale start/end dates are also configurable for countdown timers.
• Tiered pricing toggle — Use Global tiers, or Use Product Level with a custom From/To/Price table.

Fixed Packs Settings

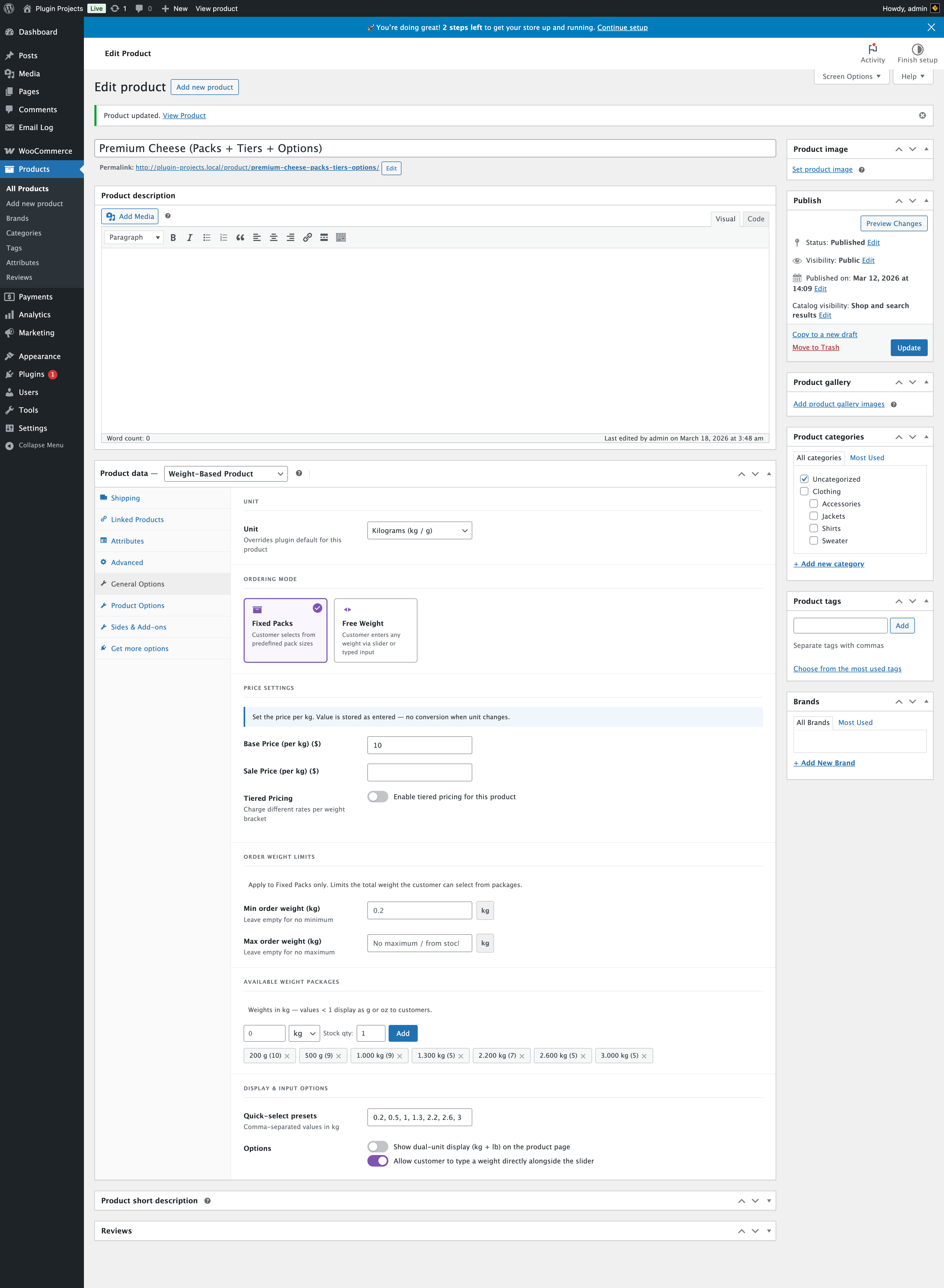

General Options tab with Fixed Packs selected: unit, pricing, order limits, packages, and pack list display.

Visible when ordering mode is "Fixed Packs":

• Order weight limits — Min and max order weight with unit selector (g/kg or oz/lb)
• Available weight packages — Add packages with weight, unit, and stock quantity. Packages appear as draggable "pills" that can be reordered. Admin pills show stock-tier colours (green/amber/red) based on the low-stock threshold.
• Edit package dialog — Click a pill to adjust weight, stock, and optional marketing badge (Recommended, Best Seller, or None).
• Pack list display — Sort order (store default, ascending, descending, catalog order) and Package card style (store default, list rows, card grid).
• Quick-select presets — Comma-separated values shown as chips.
• Show dual-unit display and Allow typed weight input

Free Weight Settings

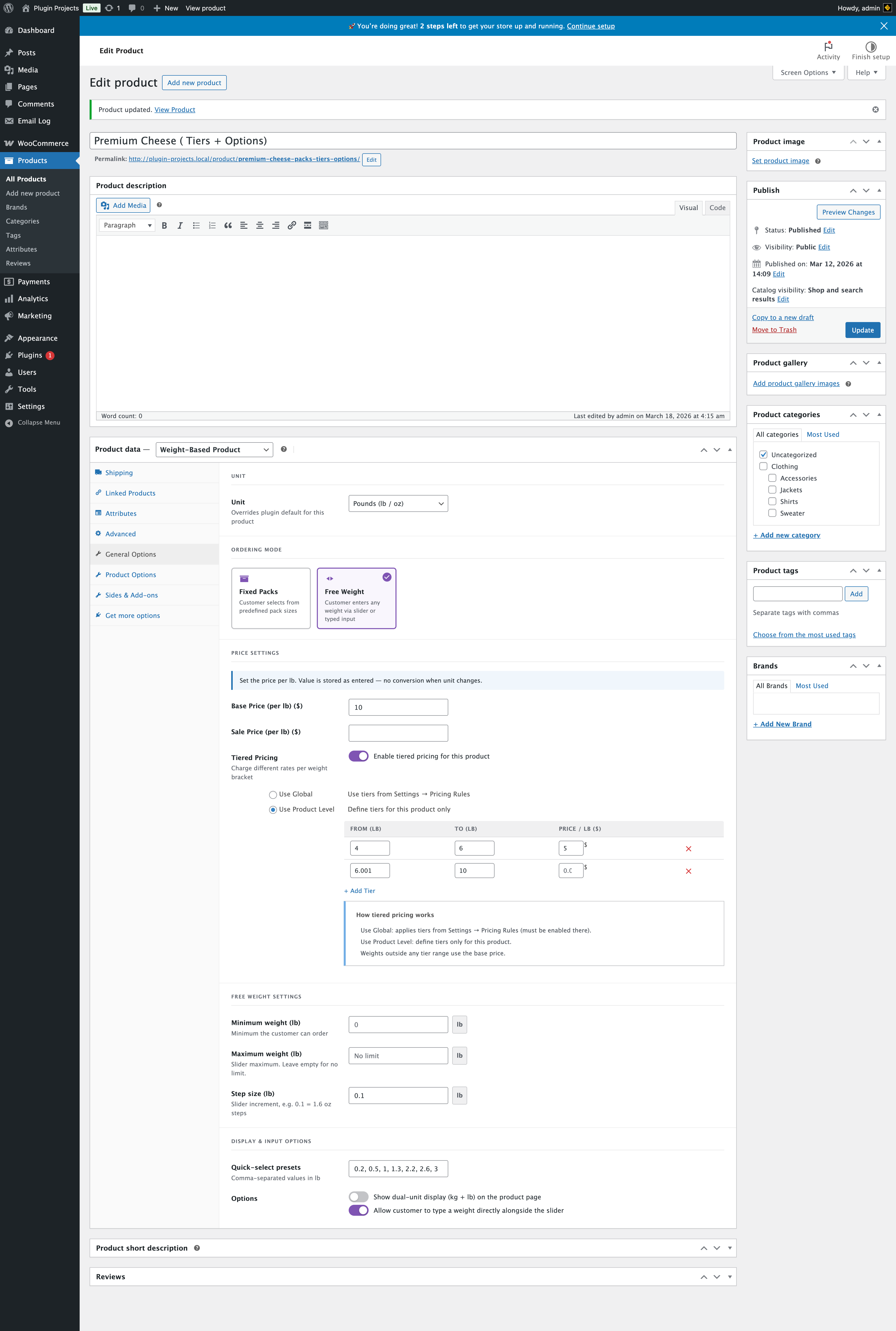

General Options tab with Free Weight selected: slider min/max/step, presets, and tiered pricing.

Visible when ordering mode is "Free Weight":

• Minimum weight, Maximum weight, Step size
• Quick-select presets, Show dual-unit, Allow typed input
• Total available weight and Low weight threshold for inventory tracking

Product Options Tab

Enable/disable global option groups for this product. Override section title, description, and individual group labels or choices. Groups are listed by category.

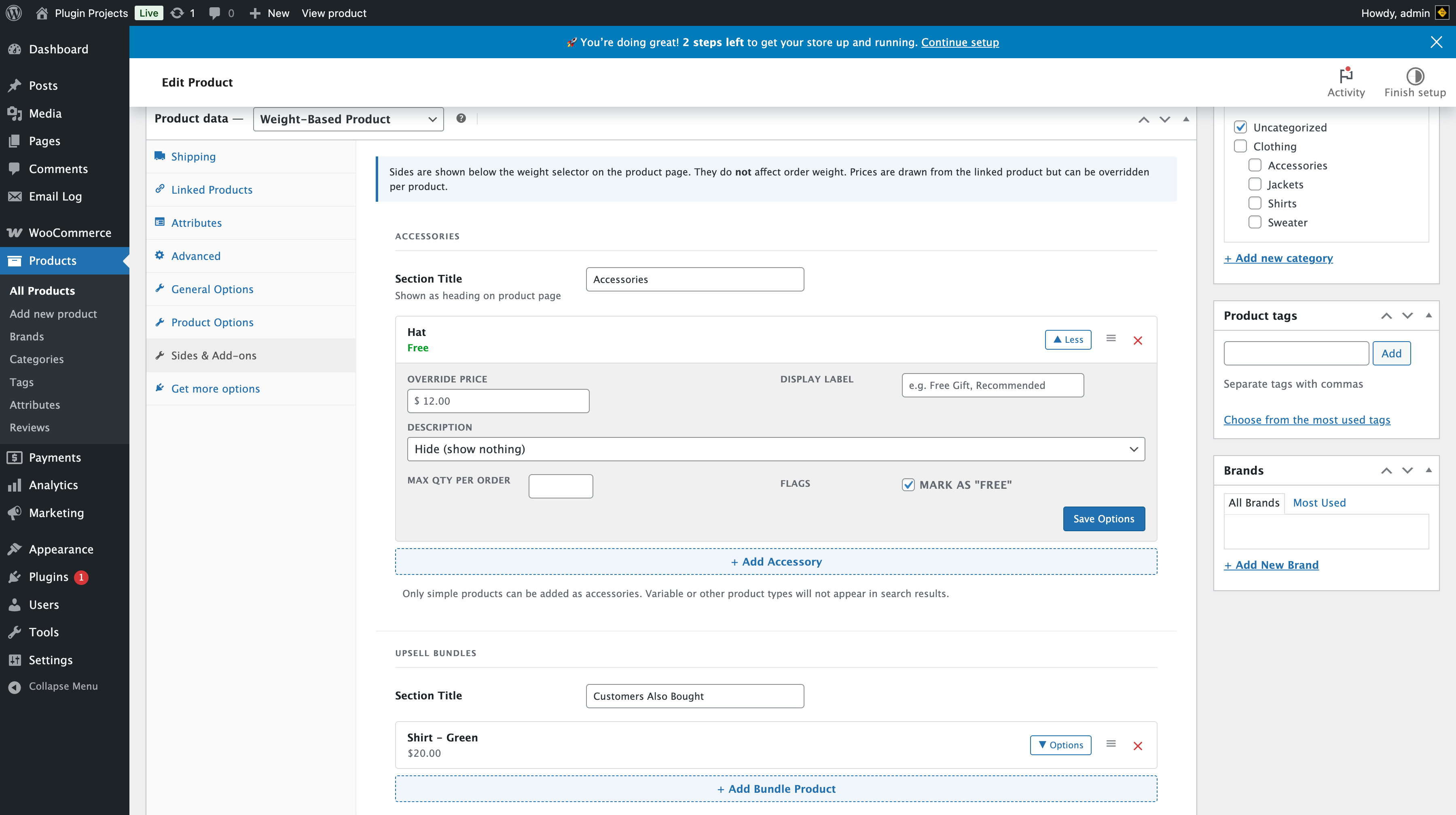

Sides & Add-ons Tab

Add accessories and upsell bundles to this product:

• Accessories section title — Override the global default
• + Add Accessory — Search for simple products; set override price, display label, description, max qty, and FREE badge
• Upsell bundles section title and + Add Bundle Product
• Drag to reorder, X to remove

Architecture

File structure, class responsibilities, and boot sequence of the Weight-Based Products plugin.

Core Files

Boot Sequence

Pricing Engine

The central pricing API:

LF_WBPW_Pricing::compute_line_pricing( array $context ): array

Input context keys:

• product_id, mode, weight, price_per_unit, quantity
• wbpw_options, wbpw_sides, include_options, include_sides

Returns:

• weight_total, options_total, sides_total, line_total
• unit_price_effective, regular_reference_total
• discount_flags.sale_active, tier_applied, role_applied

Order Meta Contracts

Hooks & Filters

All actions and filters provided by the plugin for customisation and extension.

Actions

Filters

Product & Weight

Pricing

Cart & Order

REST & JS

Units & Meta

Example: Custom Price Label

add_filter( 'lf_wbpw_price_html', function ( $html, $product ) {
    return '<span class="custom-price">From ' . $html . '</span>';
}, 10, 2 );

REST API

Dedicated REST endpoints under the wc-wbp/v1 namespace for headless and mobile integrations.

GET /wp-json/wc-wbp/v1/products/{id}

Returns product details including ordering mode, unit config, and mode-specific fields.

curl https://your-store.com/wp-json/wc-wbp/v1/products/123

Response includes: id, name, ordering_mode (packs|free), unit_config, price_per_unit, available_weights (packs mode), fw_min/fw_max/fw_step (free mode), package_card_style, and more.

Filter: lf_wbpw_rest_product_response

GET /wp-json/wc-wbp/v1/products/{id}/weight-options

Returns the best package combinations for a given target weight (Fixed Packs mode only).

curl "https://your-store.com/wp-json/wc-wbp/v1/products/123/weight-options?target_weight=2.5"

Response: Array of combination objects, each with packages (array of weight+qty pairs), total_weight, total_price, and is_exact flag.

Filter: lf_wbpw_rest_weight_options_response

GET /wp-json/wc-wbp/v1/units

Lists all registered unit families.

curl https://your-store.com/wp-json/wc-wbp/v1/units

Response: Array of objects with slug, is_core, label, and js_config (sub-unit factors, toggle keys, dual-unit hint, admin input units).

Filter: lf_wbpw_rest_units_response

WooCommerce REST Extension

Standard WooCommerce GET /wp-json/wc/v3/products/{id} responses are extended with a weight_based object for weight-based products containing ordering_mode, unit_config, package_card_style, pack weights, etc.

Filter: lf_wbpw_rest_product_weight_based_data

PHP API

Public methods available on the product model, public class, and units helper for developers building on top of the plugin.

WC_Product_Weight_Based

LF_WBPW_Public (Static)

LF_WBPW_Units

Example: Get Product Weights

$product = wc_get_product( 123 );
if ( 'weight_based' === $product->get_type() ) {
    $mode    = $product->get_ordering_mode();  // "packs" or "free"
    $price   = $product->get_active_price();   // e.g. 10.00
    $weights = $product->get_available_weights(); // [0.2, 0.5, 1, 2.5]
    $style   = $product->get_effective_package_card_style(); // "list" or "grid"
}

Custom Unit Extensions

Register custom display units (e.g. liters, milliliters) by implementing the unit family interface and hooking into the unit registry.

Registration Hook

add_action( 'lf_wbpw_register_units', function ( LF_WBPW_Unit_Registry $registry ) {
    $registry->register_family( new My_Plugin_Liter_Family() );
}, 10, 1 );

LF_WBPW_Unit_Family_Interface

Your class must implement these methods:

Loading Order

The main plugin loads the unit registry and core families early from weight-based-products.php. Your extension plugin should hook lf_wbpw_register_units on plugins_loaded (priority 20) before the first LF_WBPW_Unit_Registry::instance() call.

Storage & Meta Keys

Product meta keys use suffixes _kg or _lb. For non-core display slugs, the default storage base is kg until you change it:

add_filter( 'lf_wbpw_meta_storage_unit', function ( $meta_unit, $product_id, $display_unit ) {
    if ( 'l' === $display_unit ) {
        return 'kg'; // map volume to stored kg numbers
    }
    return $meta_unit;
}, 10, 3 );

Admin Unit Conversion

For custom input units (e.g. ml, L), implement these filters:

• lf_wbpw_convert_weight_to_meta_base — ( null|float $override, float $value, string $input_unit, string $base_unit )
• lf_wbpw_convert_weight_from_meta_base — same pattern for admin display

Return a float to override, or null to fall through to core g/kg/oz/lb logic.

REST Integration

Custom units automatically appear in:

• GET /wp-json/wc-wbp/v1/units — with js_config per family
• GET /wp-json/wc-wbp/v1/products/{id} — unit_config for the product's display family
• GET /wp-json/wc/v3/products/{id} — weight_based.unit_config

Frequently Asked Questions

Common questions about compatibility, configuration, and troubleshooting.

Does this work with WooCommerce Blocks?

Yes. The plugin integrates with WooCommerce Blocks for cart quantity limits and product grid display. The block-based cart and checkout are fully supported.

Is it HPOS compatible?

Yes. The plugin declares High-Performance Order Storage (custom order tables) compatibility. It works with both the traditional wp_posts storage and the new HPOS tables.

Can I customise the colours to match my theme?

Yes. Multiple approaches:

• Use the Appearance settings tab for visual controls (colours, borders, typography)
• Apply an Appearance Preset (Default, Glass, Nature, Elegant) as a starting point
• Override CSS custom properties (--lf-wbpw-primary, etc.) in your theme
• Add custom rules in the Custom CSS field in Appearance settings

What is CSS Isolation mode?

When enabled, the plugin adds a body class (lf-wbpw-isolated) and all plugin CSS rules are scoped inside it, giving them higher specificity. This prevents themes or other plugins from accidentally overriding the plugin's styles. Disable it if you want your theme to control the styling.

Does changing the unit convert existing data?

No. Prices and weights are stored as entered. Changing the unit (e.g. from kg to lb) on an existing product does NOT automatically convert values. You must manually update all prices and package weights after a unit change.

What changed in the REST API in v1.7.0?

The API now uses the wc-wbp/v1 namespace (previously wc/v3) and the endpoint path changed to GET /wp-json/wc-wbp/v1/products/{id}/weight-options. A new endpoint GET /wp-json/wc-wbp/v1/products/{id} was also added.

Why do my cart items merge?

The plugin automatically consolidates cart lines when the same weight-based product (with identical options and sides) is added multiple times. Pack counts or free-weight values are summed. This is by design to provide a clean cart experience. If you don't want merging, ensure different options are selected each time.

Why does the cart always show quantity 1?

Weight-based products use quantity 1 as a container. The actual weight is stored internally in the weight_data field. If WooCommerce increments the quantity (e.g. to 2), the plugin automatically folds it into the weight snapshot (doubling the packs/weight).

Does it work on WordPress Multisite?

Yes, but each site needs its own WooCommerce installation and plugin activation. Settings and products are per-site.

Changelog

Version history and release notes for Weight-Based Products.

v2.1.3 (Current)

• Stability improvements and bug fixes
• WordPress 6.9 and WooCommerce 10.6.1 compatibility

v2.0.30

• Added Option Group Categories: organise related option groups under parent categories
• Added Premium Pack Cards (Grid View): visual overhaul with bold typography, 16px corners, hover effects
• Added 9 new Appearance Settings for Pack Cards: selected state colours, text colours, font sizes

v2.0.28

• Max packages in suggestion setting (lf_wbpw_combo_max_items, default 25, range 1–500)

v2.0.27

• Per-product Package card style override (list/grid) for Fixed Packs
• New filter lf_wbpw_effective_package_card_style

v2.0.26

• Per-pack marketing badges (Recommended, Best Seller)
• Admin pack pill stock-tier colours (green/amber/red)

v2.0.25

• Create Sample Products tool: 15 demo scenarios with option categories, groups, and WBP Samples category

v2.0.24

• Filters lf_wbpw_convert_weight_to_meta_base / lf_wbpw_convert_weight_from_meta_base for extension unit conversions
• Price and free-weight admin dropdowns use active family's admin_input_units

v2.0.23

• LF_WBPW_Unit_Family_Interface::get_js_config() for localised sub-unit math
• GET /wp-json/wc-wbp/v1/units endpoint with js_config per family

v2.0.22

• Unit Registry: extensible unit families via lf_wbpw_register_units
• LF_WBPW_Unit_Family_Interface and core kg/lb implementations

v2.0.21

• Appearance Presets: Default, Glass, Nature, Elegant one-click themes

Earlier Versions

For the complete changelog including all earlier versions, see the changelog.txt file in the plugin directory.
